- Auto-Volumetric
- Multi Boiler
- Pre-infusion pressure profiling
Have a question?
We're here to help.
Warranty Included
Premium Brands
Flexible Payments
Free Delivery

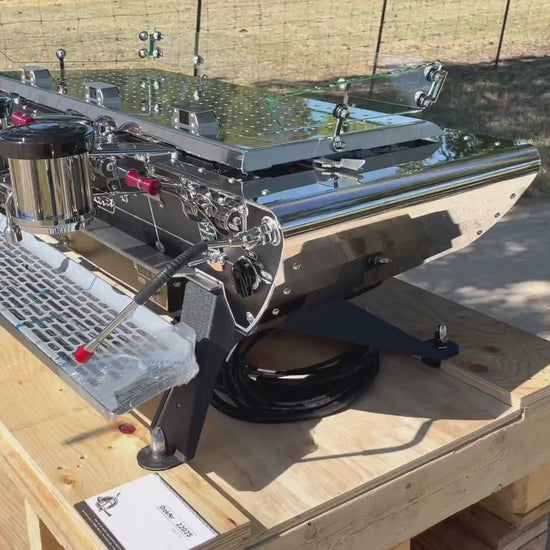

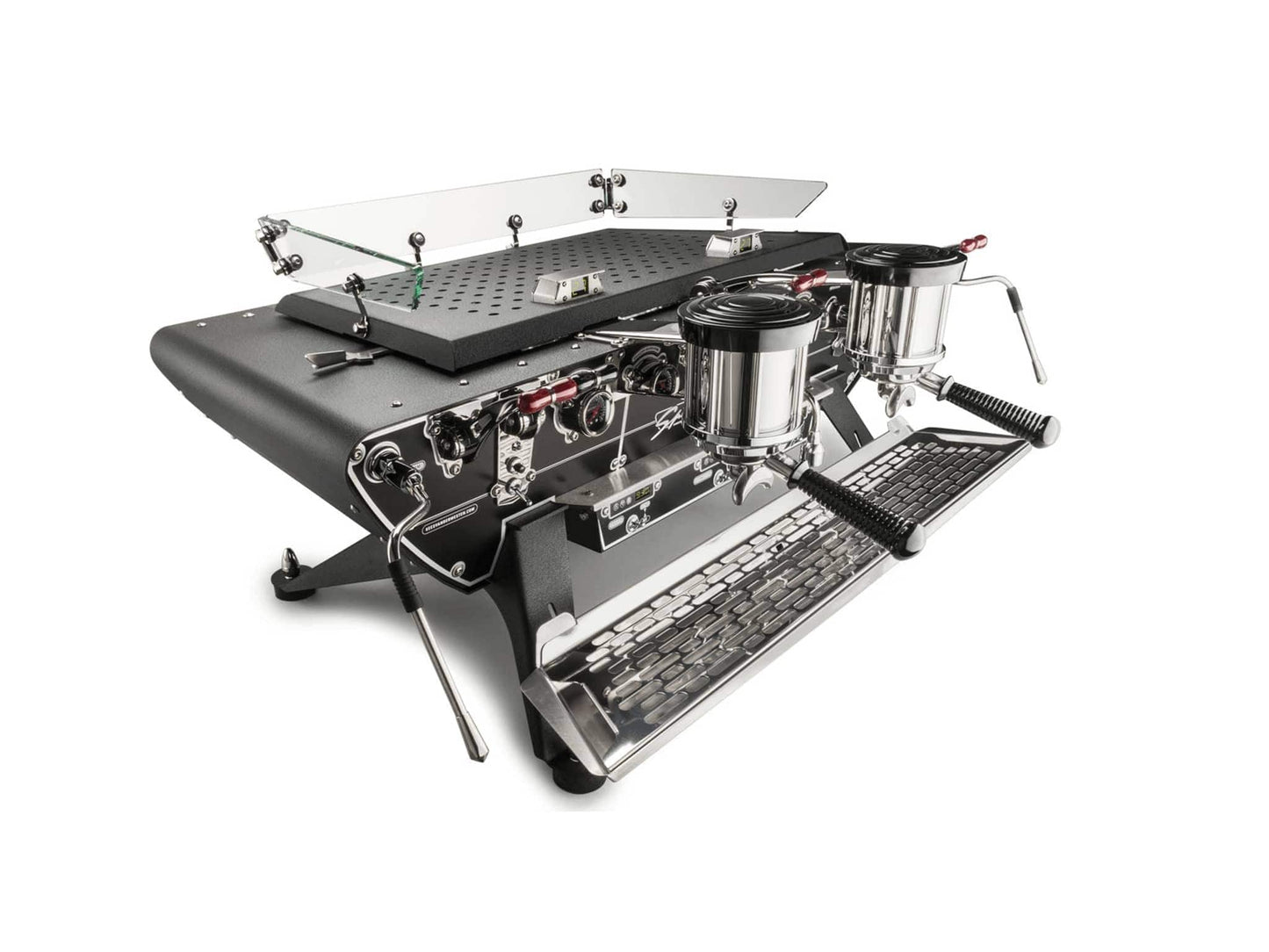

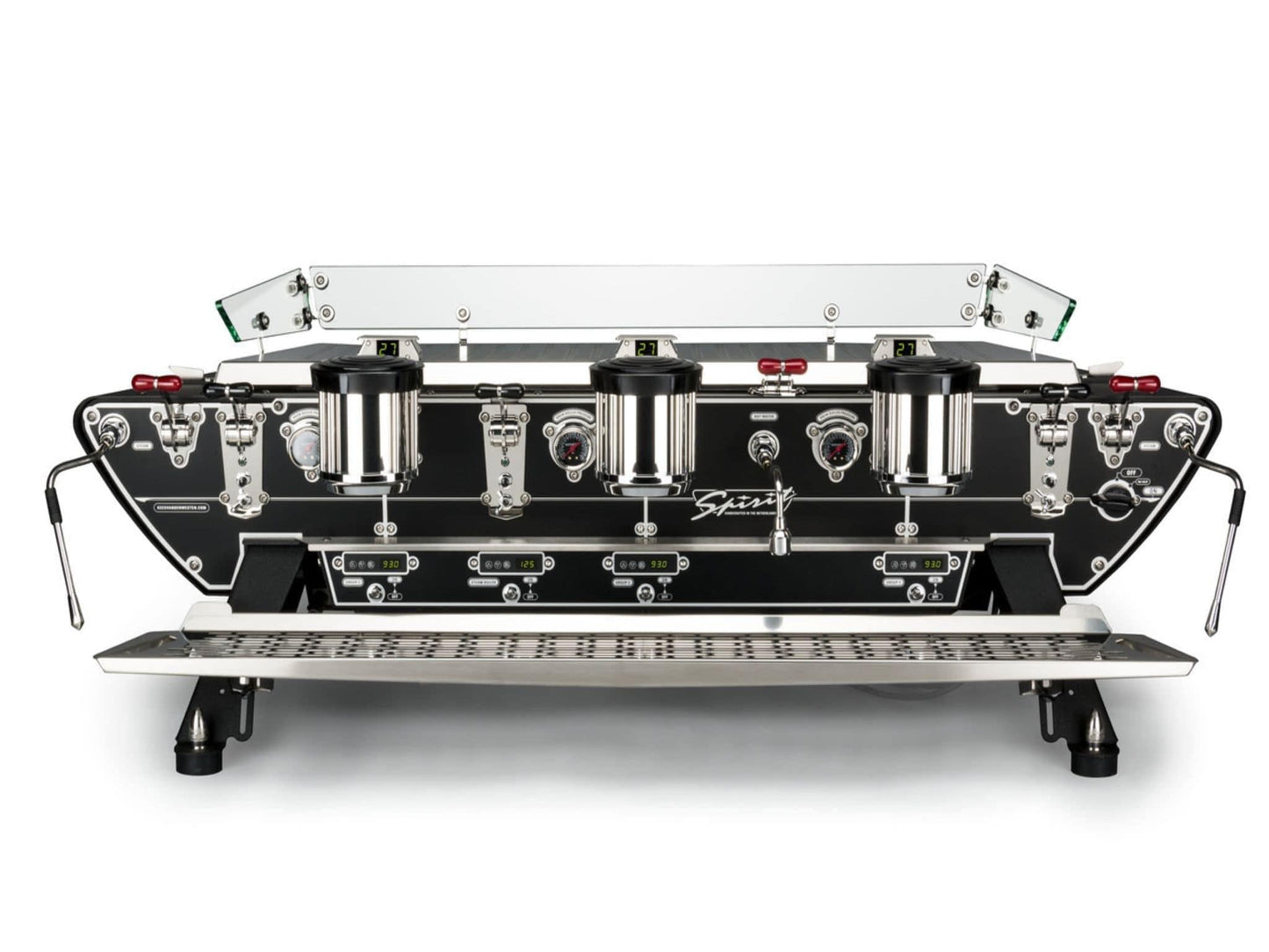

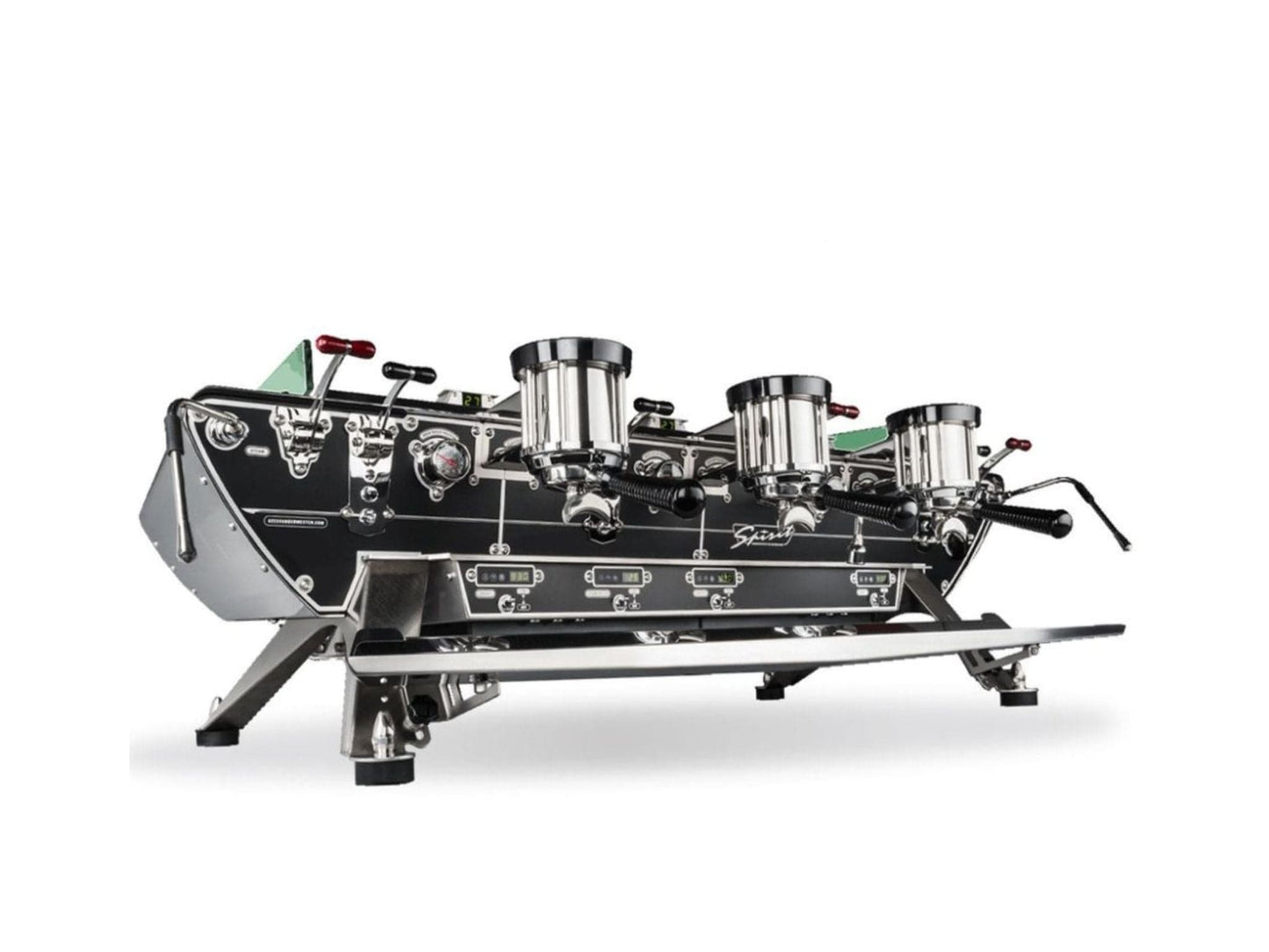

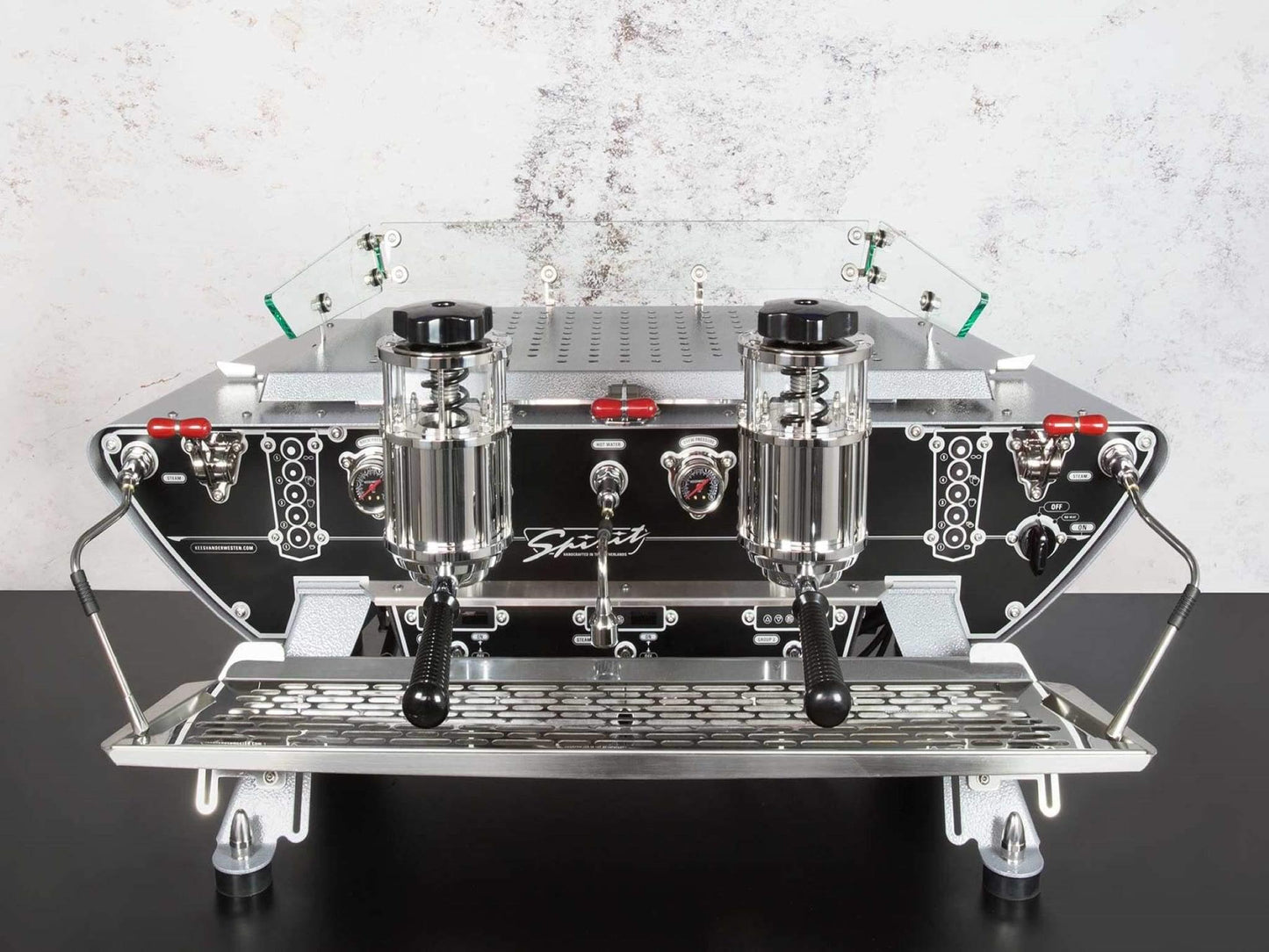

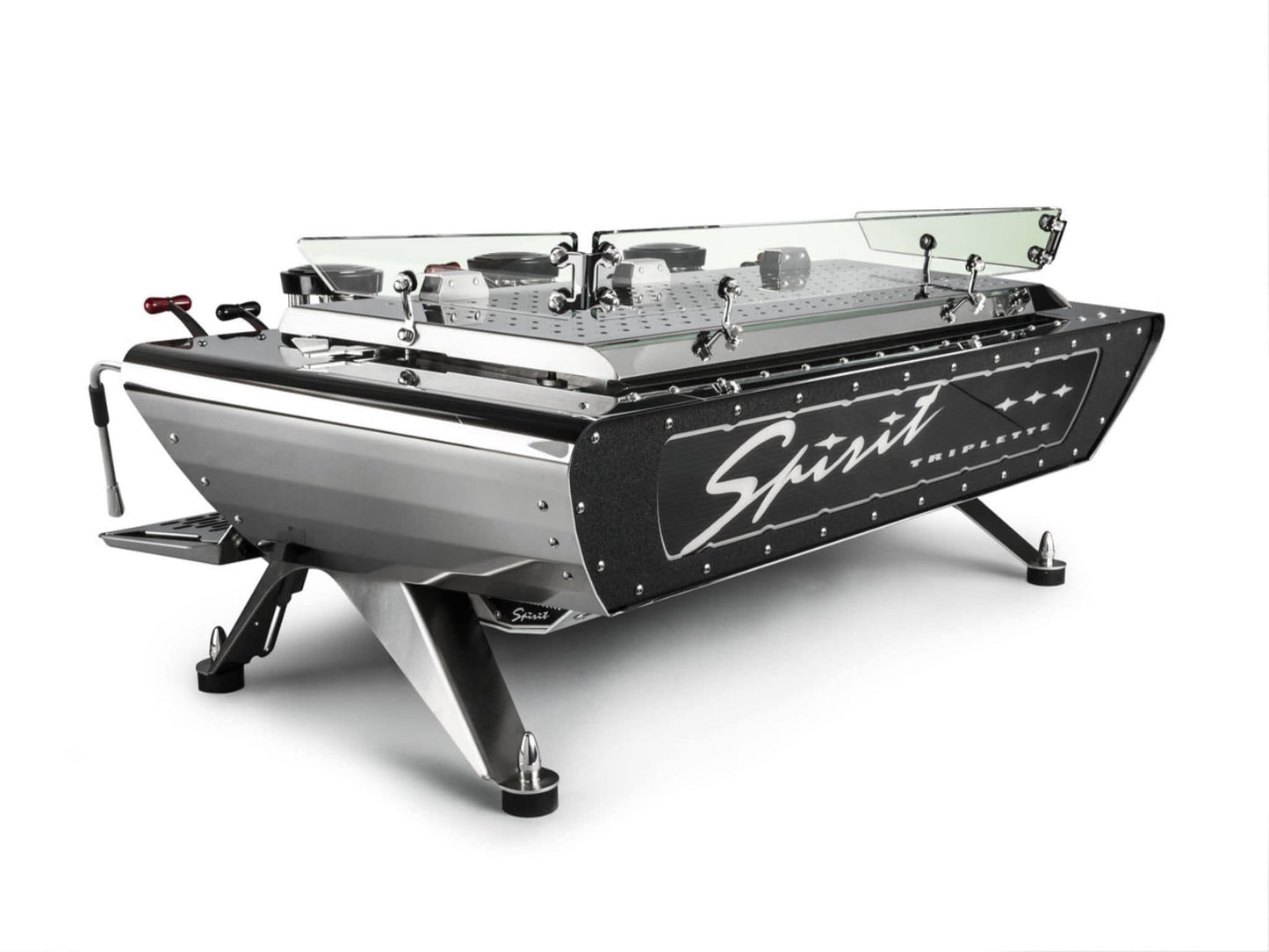

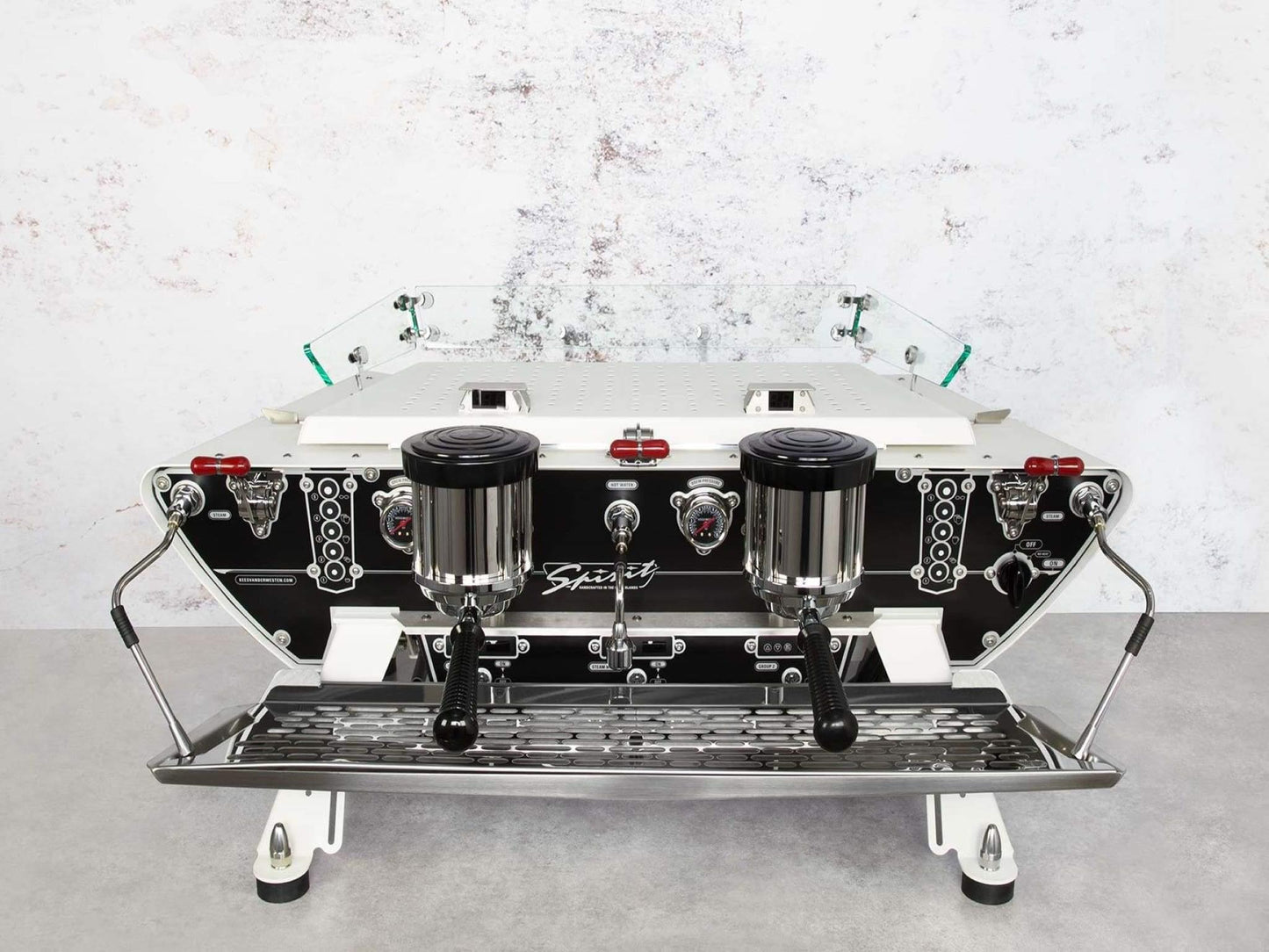

The Kees van Der Westen Spirit is a state of the art multi-boiler espresso machine. Developed with ergonomics and demands of very high output espresso bars in mind.
The Spirit represents the apex of Kees' hand crafted line of espresso machines. The machine is truly stunning, making it an exceptional showpiece for the bar. Featuring two external pumps, multiple steam boilers with over-rated heating elements, and precise temperature control of each boiler, it's designed to exceed the requirements of even the most exacting coffee programs. With all that power, the built-in eco-mode ensures power efficiency during low-demand periods.
Includes Free Shipping, a 12-month parts warranty, and Lifetime Pro Support.
- Heat exchange + Multi-boiler Technology - The Spirit has one large steam boiler and exceptionally large independent brew boilers (2.1 ltr) for each group head. Brew boilers are fed by water preheated via heat exchanger for exceptional temperature stability.
- Independent PID Control - Each boiler is algorithmically controlled and programmable via digital display.
- Saturated Group Heads - Ensures consistent temperature from boiler to coffee puck.
- Equipped With 2 External Pumps - One feeds steam boiler and one feeds the brew boilers. This ensures group head brew pressure isn’t impacted by refilling the steam boiler.
- Shot Timers in Full View Above Each Group - Makes perfect shot times easy to track.
- Pre-Infusion Pressure Profiling - Pressure slowly ramps up to 9 bars, minimizing channeling and producing more consistent extraction.
- Illuminated Rear Panel - Showcase the Spirit or customize with your own cafe logo.
- Intuitive Operation by Levers - Two programmable shot volumes for simple usage.
- Energy Saving Eco Mode - Temperature can be programmed to drop during off-peak hours to save energy; each boiler can be switched on and off separately.
- Auto-Back-Flush Program - Groups pressurize and discharge multiple times for an internal wash-out.
- Self-Bleeding Groups - Shutdown cleaning is quick and easy.
- Heat Neutral Polymer Dispersion Block - Outside parts stay cool and easy to clean.
- Integrated Safety Features - Heavily protected heating element, additional temperature probe and 120s time-out of solenoid to protect staff and customers from accidents.
- Elevated Position of Body - Easy cleaning of bar surface, yet low enough to allow comfortable barista-customer contact.
| Manufacturer: | Kees Van Der Westen | |
| Boiler Type: | Preheated Multi-Boiler | |
| Size: | Duette | Triplette |
| Steam Boiler Capacity: | 10.5L | 19.5L |
| Brew boiler Capacity: | 2.1L x 2 | 2.1L x 3 |
| Length (in): | 45.3” | 49.6” |
| Depth (in): | 28" | 28" |
| Height (in): | 17.7” | 17.7” |
| Voltage: | 220-240 V | 220-240 V |
| Amperage: | 32-33 A | 41-45 A |
| Wattage: | 7300-7600 W | 9400-10100 W |
| Weight: | 198.5 lbs | 275.6 lbs |
| Certification: | CE | CE |
Standard warranty covers the replacement of defective parts for up to 12 months after purchase date.
30-Day Returns - Standard returns Returns are accepted if initiated by the buyer within 30 days of receipt. Returned equipment must be in the same condition as received per our inspection or else dockages may be incurred. A 20% restocking fee applies to espresso machines, brew equipment and grinders; this covers subsequent physical and mechanical inspection, additional setup/testing, and restocking post receipt. Buyer is responsible for return shipping to our facility (located in Austin, Texas), along with any associated costs that may be incurred. Read our full returns policy
Click here to view KVDW Spirit user manual.
WHAT’S INCLUDED?
Installation Requirements
Professional Installation Required
We’re happy to advise on any of the above requirements
Manufacturer
Warranty & Returns
Standard warranty covers the replacement of defective parts for up to 12 months after purchase date.
30-Day Returns - Standard returns Returns are accepted if initiated by the buyer within 30 days of receipt. Returned equipment must be in the same condition as received per our inspection or else dockages may be incurred. A 20% restocking fee applies to espresso machines, brew equipment and grinders; this covers subsequent physical and mechanical inspection, additional setup/testing, and restocking post receipt. Buyer is responsible for return shipping to our facility (located in Austin, Texas), along with any associated costs that may be incurred. Read our full returns policy
RESOURCES
Click here to view KVDW Spirit user manual.
SPECIFICATIONS
Manufacturer
Kees Van Der Westen
Boiler Type
Number of group heads
Duette
Tripette
Steam Boiler Capacity
10.5 L
19.5 L
Length (in)
45.3”
49.6”
Depth (in)
28"
28"
Height (in)
17.7”
17.7”
Voltage
220-240V
220-240V
Amperage
32-33 A
41-45 A
Wattage
7300-7600 W
9400-10100 W
Weight
198.5 lbs
275.6 lbs
Certificate
CE
