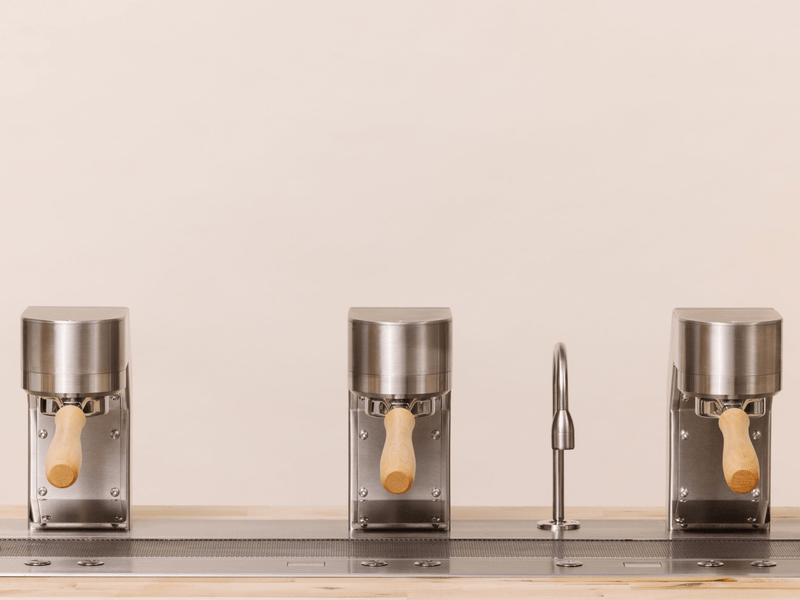

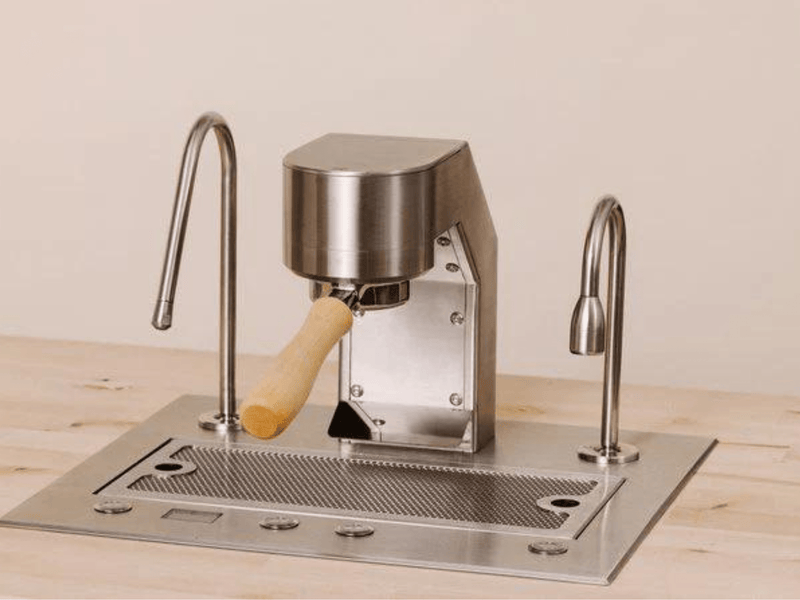

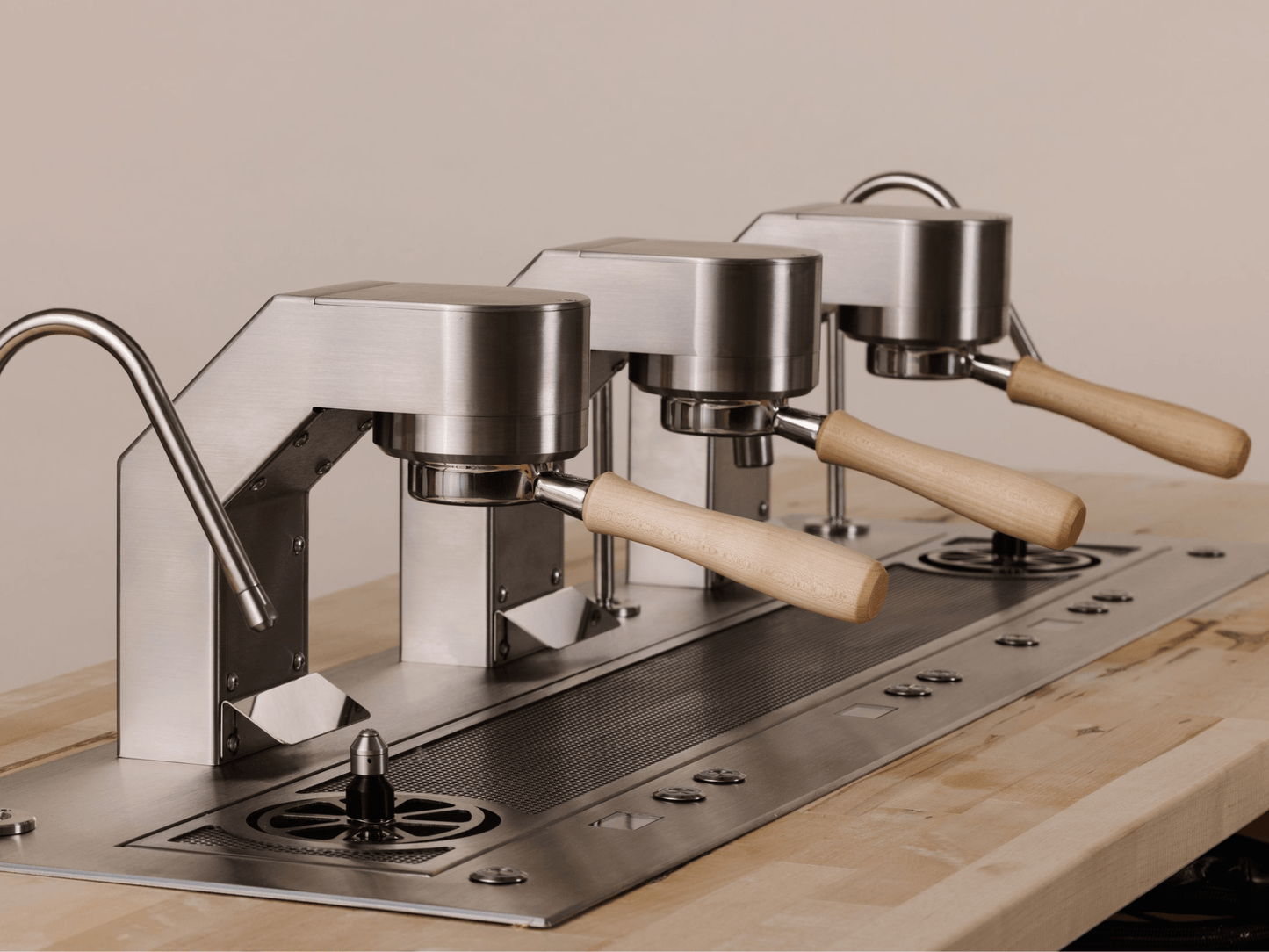

Mavam Undercounter
With a freeing, open platform that emphasizes visibility and accessibility throughout its architecture, the MAVAM Under Counter features multiple points of temperature stability, independently engineered brew heads, and auto volumetrics paired with endless cool touch steam. Unparalleled design, ultra visibility, temperature stability second to none. Find true workflow freedom with the MAVAM Under Counter.
Key features
Brutalist modern design: Instantly recognizable esthetic and brutalist design elements, Best New Product Coffee Fest award winner
True Workflow Freedom: High visibility and open customer engagement guaranteed
Pre-Infusion And Post-Infusion- The barista can vary the water pressure both in the initial stage (pre-infusion) and in the Auto Volumetric Featuring API: Our API (Automated Pre-Infusion) update detects the moment your espresso puck reaches full saturation and automatically kicks in full flow, hands free, every time
Compact and Optimized:Features drip tray with incorporated Spin Jet pitcher rinser and hot water tap
Best In-Class Temperature Stability: Three points of temperature regulation, including our patented Heated Hose Transfer System
One touch Piezo steam activation: For endless steam that is always within reach
Specifications
1 Group | 2 Group | 3 Group | |||
Interface | 16" / 40.5cm L x 14" / 35.5CM D x 9" / 23cm H | Interface | 28" / 71cm L x 14" / 35.5CM D x 9" / 23cm H | Interface | 48" / 122cm L x 14" / 35.5CM D x 9" / 23cm H |
Boiler Unit | 16" / 40.5cm L x 18" / 16cm D x 13 \ 33cm H | Boiler Unit | 24" / 61cm L x 18" / 46cm D x 13 \ 33cm H | Boiler Unit | 28" / 68.5cm L x 18" / 46cm D x 13 \ 33cm H |
Pump Unit | 5" / 13cm L x 11" / 28cm D x 8" \ 20cm H | Pump Unit | 5" / 13cm L x 11" / 28cm D x 8" \ 20cm H | Pump Unit | 5" / 13cm L x 11" / 28cm D x 8" \ 20cm H |
Voltage | 208-240 | Voltage | 208-240 | Voltage | 208-240 |
Phase | Single or Three | Phase | Single or Three | Phase | Single or Three |
Frequency | 50\60hz | Frequency | 50\60hz | Frequency | 50\60hz |
Amps | 20 | Amps | 20 | Amps | 20 |
Copper 5.5L Boiler | 4kW | Copper 11L Boiler | 4kW | Copper 11L Boiler | 4kW |
500ml Stainless steel boiler per group | 500w | 500ml Stainless steel boiler per group | 500w | 500ml Stainless steel boiler per group | 500w |
Heated Group | 200w | Heated Group | 200w | Heated Group | 200w |
Certifications | CE, UKCA, ETL, NSF | Certifications | CE, UKCA, ETL, NSF | Certifications | CE, UKCA, ETL, NSF |
